Importing a Modeled Mesh From Blender to Three.js

Jonathan Petitcolas
Jonathan PetitcolasJuly 31, 2015
#js#3d#tutorial

It has been a very long time since the last Three.js rotating cube post. Better late than never, right? Here is the next part about the import and animation of a more complex mesh created in a modeling software. Yet, as we are not designer (and a fortiori, not 3D designer), we will focus on a not too complicated mesh: the marmelab logo.

Modeling Marmelab Logo with Blender

We are going to use Blender, a free and open-source 3D modeler. First, let's create the mesh. Fortunately, marmelab logo is quite simple: it is composed of five cubes glued together to form the letter M. Here is a video describing this modeling:

YouTube might track you and we would rather have your consent before loading this video.

Always allow

Export a Blender Mesh in JSON for Three.js

Now that we got our mesh (you can download it here), let's take a look on how to export it for Three.js. Three.js expects to get a Mesh in JSON format. Fortunately, the community has already provided a Blender to Three.js exporter. So, download it and put the io_three folder under your ~/.config/blender/2.69/scripts/addons/ folder or its equivalent depending your operating system (check the README for more informations).

Then, open the File > User preferences and go to the Addons tab. Search for Three.js and enable the found plug-in. Now, you should be able to see a File > Export > Three.js option. On the opened tab, ensure that Face Materials checkbox is checked. Otherwise, you won't have materials, and Three.js is going to refuse to import your mesh.

Once saved, your file should look like the following:

{
    "metadata": {
        "uvs": 0,
        "type": "Geometry",
        "normals": 31,
        "generator": "io_three",
        "materials": 6,
        "version": 3,
        "vertices": 200,
        "faces": 198
    },
    "vertices":[/* ... */],
    "uvs": [],
    "name": "CubeGeometry",
    "materials": [/* ... */],
    "normals":[/* ... */],
    "faces":[/* ... */]
}

All required data is here. The most important are vertices, faces, normals (to compute lighting correctly), and materials.

Importing Mesh From Blender in Three.js

Now we got our mesh into an understandable format, let's import it in Three.js. Based on the last tutorial code, we just have to replace our initCube function by an initMesh one:

var mesh = null;
function initMesh() {
  var loader = new THREE.JSONLoader();
  loader.load("./marmelab-logo.json", function(geometry) {
    mesh = new THREE.Mesh(geometry);
    scene.add(mesh);
  });
}

Note that as you load a file dynamically, you can't open your file directly with a browser. You have to use a Web server. On Linux, you can use for instance the Node.js http-server package.

npm install -g http-server
http-server .

Rotating a Mesh

Do not forget to modify the rotateCube function:

function rotateMesh() {
  if (!mesh) {
    return;
  }

  mesh.rotation.x -= SPEED * 2;
  mesh.rotation.y -= SPEED;
  mesh.rotation.z -= SPEED * 3;
}

As you can see, working with a mesh is exactly the same as working with a primitive. We just check that our mesh is loaded to avoid a warning. Indeed, the loading function is an asynchronous one and then, the rendering loop may start before our model is in memory. A cleaner way to deal with it would be to start rendering only when model is loaded, but let's keep it simple for this tutorial.

If your refresh your browser, you should now see a wireframed rotating marmelab logo. Yet, if you look deeper, you may see a graphical glitch:

Marmelab rotation logo's glitch

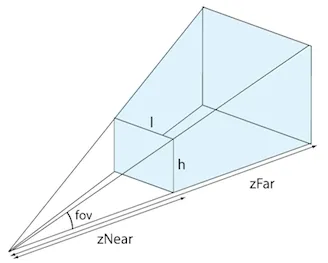

It seems some edges are broken. No mesh has been hurt during this animation, I swear. It is just a concrete example of the zFar distance from this previous post schema:

Perspective camera in WebGL

The value provided to the camera is not enough. So, we got two solutions: either increase the camera maximum length vision, or reduce the size of our mesh. Let choose the latter. Modify the initMesh method adding this line in the callback:

mesh.scale.x = mesh.scale.y = mesh.scale.z = 0.75;

This way, we reduce the size of our rotation logo by 25%. The glitch should have disappeared.

Changing Rotation Center Position

Rotation center is currently located at the bottom of one of the M branch. It would be far better if it occurred at the common point of all cubes. To do so, we have to translate the rotation origin, using transformation matrices. Sounds complicated? Fortunately, Three.js simplifies a lot our work:

loader.load("./marmelab-logo.json", function(geometry) {
  mesh = new THREE.Mesh(geometry);
  mesh.scale.x = mesh.scale.y = mesh.scale.z = 0.75;
  mesh.translation = THREE.GeometryUtils.center(geometry);
  scene.add(mesh);
});

All the magic happens on the mesh.translation line. We retrieve the center of our mesh, thanks to the GeometryUtils.center, and then translate it accordingly to make it rotate on its center.

Loading Materials

Our Blender file contains several materials in order to colorize different faces. So, let's add these materials to our mesh to get rid of this wireframe display. Materials are also loaded through the loader.load method. You just have to add a second argument materials to the callback function:

loader.load("./marmelab-logo.json", function(geometry, materials) {
  mesh = new THREE.Mesh(geometry, new THREE.MeshFaceMaterial(materials));
  // ...
});

Do not forget to pass materials to the THREE.MeshFaceMaterial function, otherwise you would get the following error:

Cannot read property 'uniforms' of undefined

Let There Be Light

We don't have wireframes anymore, but our textures are fully black. This is due to a lack of light on our scene.

Three.js mesh without lights

So, let's create a new initLights method and let's call it in our init function:

function initLights() {
  var light = new THREE.AmbientLight(0xffffff);
  scene.add(light);
}

We added here a white AmbientLight. This kind of light is applied everywhere, so you don't have to worry about the light position. As we are going to see lights in more details in another post, I won't cover it for the moment.

www.jonathan-petitcolas.com might track you and we would rather have your consent before loading this.

Always allow

Woohoo! We now have a nice looking marmelab logo. As usual, demonstration and source code are both available on GitHub.
