<ReferenceArrayField>

Use <ReferenceArrayField> to display a list of related records, via a one-to-many relationship materialized by an array of foreign keys.

<ReferenceArrayField> fetches a list of referenced records (using the dataProvider.getMany() method), and puts them in a ListContext. It then renders each related record, using its recordRepresentation, in a <ChipField>.

Tip: If the relationship is materialized by a foreign key on the referenced resource, use the <ReferenceManyField> component instead.

Tip: To edit the records of a one-to-many relationship, use the <ReferenceArrayInput> component.

Usage

For instance, let’s consider a model where a post has many tags, materialized to a tags_ids field containing an array of ids:

┌──────────────┐       ┌────────┐
│ posts        │       │ tags   │
│--------------│       │--------│
│ id           │   ┌───│ id     │
│ title        │   │   │ name   │
│ body         │   │   └────────┘
│ is_published │   │
│ tag_ids      │╾──┘
└──────────────┘

A typical post record therefore looks like this:

{
  "id": 1,
  "title": "Hello world",
  "body": "...",
  "is_published": true,
  "tags_ids": [1, 2, 3]
}

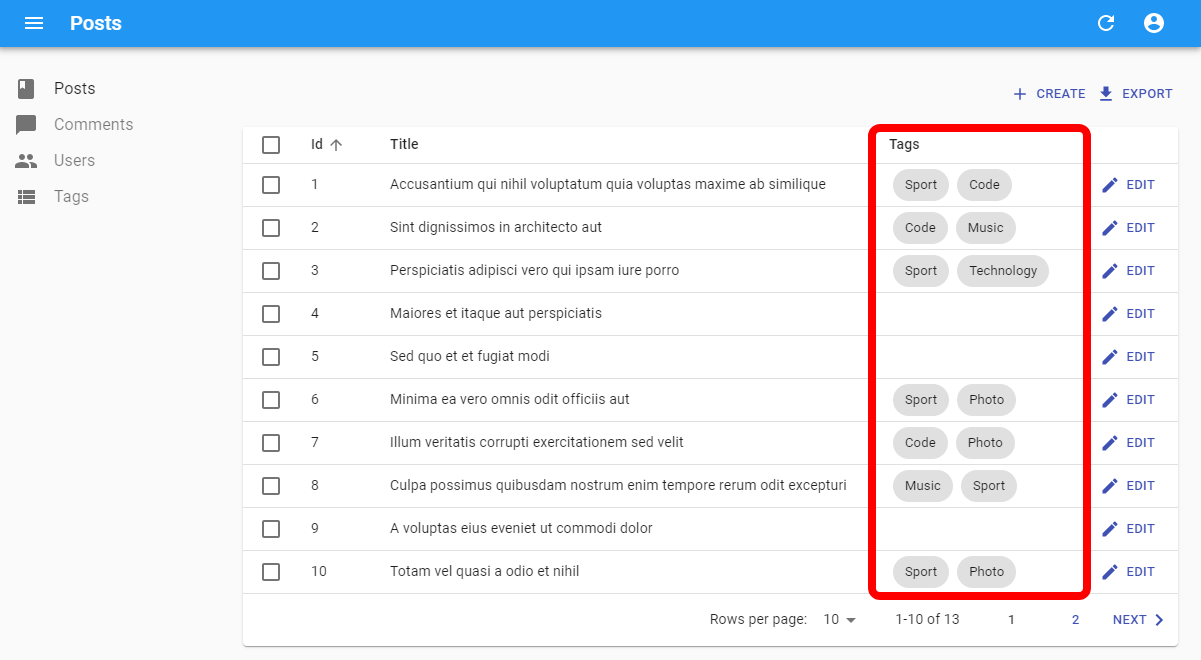

In that case, use <ReferenceArrayField> to display the post tag names as Chips as follows:

import { List, DataTable, ReferenceArrayField } from 'react-admin';

export const PostList = () => (
    <List>
        <DataTable>
            <DataTable.Col source="id" />
            <DataTable.Col source="title" />
            <DataTable.Col source="tag_ids" label="Tags">
                <ReferenceArrayField reference="tags" source="tag_ids" />
            </DataTable.Col>
            <DataTable.Col>
                <EditButton />
            </DataTable.Col>
        </DataTable>
    </List>
);

<ReferenceArrayField> expects a reference attribute, which specifies the resource to fetch for the related records. It also expects a source attribute, which defines the field containing the list of ids to look for in the referenced resource.

<ReferenceArrayField> fetches the tag resources related to each post resource by matching post.tag_ids to tag.id. By default, it renders one string by related record, via a <SingleFieldList> with a <ChipField> child using the resource recordRepresentation as source

Configure the <Resource recordRepresentation> to render related records in a meaningful way. For instance, for the tags resource, if you want the <ReferenceArrayField> to display the tag name:

<Resource name="tags" list={TagList} recordRepresentation="name" />

You can change how the list of related records is rendered by passing a custom child reading the ListContext (e.g. a <DataTable>). See the children section for details.

Props

* You must provide either children or render.

<ReferenceArrayField> also accepts the common field props, except emptyText (use the child empty prop instead).

children

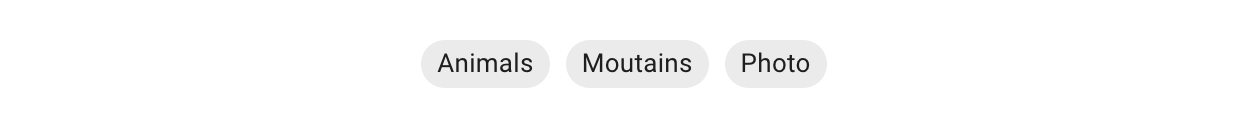

By default, <ReferenceArrayField> renders one string by related record, via a <SingleFieldList> with a <ChipField> using the resource recordRepresentation.

You can pass any component of your own as child, to render the list of related records in another way.

That means that using the field without child:

<ReferenceArrayField label="Tags" reference="tags" source="tag_ids" />

Is equivalent to:

<ReferenceArrayField label="Tags" reference="tags" source="tag_ids">
    <SingleFieldList>
        <ChipField source="name" />
    </SingleFieldList>
</ReferenceArrayField>

<ReferenceArrayField> creates a ListContext, so you can use any child that uses a ListContext:

• <SingleFieldList>
• <DataTable>
• <Datagrid>
• <SimpleList>
• <EditableDatagrid>
• <Calendar>
• Or a component of your own (check the <WithListContext> and the useListContext chapters to learn how).

For instance, use a <DataTable> to render the related records in a table:

import { Show, SimpleShowLayout, TextField, ReferenceArrayField, DataTable, ShowButton } from 'react-admin';

export const PostShow = () => (
    <Show>
        <SimpleShowLayout>
            <TextField source="id" />
            <TextField source="title" />
            <ReferenceArrayField label="Tags" reference="tags" source="tag_ids">
                <DataTable>
                    <DataTable.Col source="id" />
                    <DataTable.Col source="name" />
                    <DataTable.Col>
                        <ShowButton />
                    </DataTable.Col>
                </DataTable>
            </ReferenceArrayField>
            <EditButton />
        </SimpleShowLayout>
    </Show>
);

Alternatively, you can use the render prop to render the related records in a custom way:

import { Show, SimpleShowLayout, TextField, ReferenceArrayField } from 'react-admin';

export const PostShow = () => (
    <Show>
        <SimpleShowLayout>
            <TextField source="id" />
            <TextField source="title" />
            <ReferenceArrayField
                label="Tags"
                reference="tags"
                source="tag_ids"
                render={({ data }) => (
                    <ul>
                        {data?.map(tag => (
                            <li key={tag.id}>{tag.name}</li>
                        ))}
                    </ul>
                )}
            />
            <EditButton />
        </SimpleShowLayout>
    </Show>
);

filter

<ReferenceArrayField> fetches all the related records, and displays them all, too. You can use the filter prop to filter the list of related records to display (this works by filtering the records client-side, after the fetch). )} /> </SimpleShowLayout> </Show> );

## `filter`

`<ReferenceArrayField>` fetches all the related records, and displays them all, too. You can use the `filter` prop to filter the list of related records to display (this works by filtering the records client-side, after the fetch).

For instance, to render only tags that are 'published', you can use the following code:


```jsx
<ReferenceArrayField
    label="Tags"
    source="tag_ids"
    reference="tags"
    filter={{ is_published: true }}
/>

label

By default, <SimpleShowLayout>, <Datagrid> and other layout components infer the label of a field based on its source. For a <ReferenceArrayField>, this may not be what you expect:

{/* default label is 'Tag Ids', or the translation of 'resources.posts.fields.tag_ids' if it exists */}
<ReferenceArrayField source="tag_ids" reference="tags" />

That’s why you often need to set an explicit label on a <ReferenceField>:

<ReferenceArrayField label="Tags" source="tag_ids" reference="tags" />

Tip: Having to specify the label prop on the field for it to be used by the Datagrid is no longer necessary with <DataTable>, the successor of the <Datagrid> component. Instead, <DataTable> properly separates the props for the column header and the field itself, thanks to the <DataTable.Col> component.

React-admin uses the i18n system to translate the label, so you can use translation keys to have one label for each language supported by the interface:

<ReferenceArrayField label="resource.posts.fields.tags" source="tag_ids" reference="tags" />

pagination

<ReferenceArrayField> fetches all the related fields, and puts them all in a ListContext. If a record has a large number of related records, you can limit the number of displayed records with the perPage prop. Then, let users display remaining records by rendering pagination controls. For that purpose, pass a pagination element to the pagination prop.

For instance, to limit the display of related records to 10, you can use the following code:

import { Pagination, ReferenceArrayField } from 'react-admin';

<ReferenceArrayField
    label="Tags"
    source="tag_ids"
    reference="tags"
    perPage={10}
    pagination={<Pagination />}
/>

perPage

<ReferenceArrayField> fetches all the related fields, and puts them all in a ListContext. If a record has a large number of related records, it may be a good idea to limit the number of displayed records. The perPage prop allows to create a client-side pagination for the related records.

For instance, to limit the display of related records to 10, you can use the following code:

 <ReferenceArrayField label="Tags" source="tag_ids" reference="tags" perPage={10} />

If you want to let the user display the remaining records, you have to pass a pagination element.

queryOptions

Use the queryOptions prop to pass options to the dataProvider.getMany() query that fetches the referenced record.

For instance, to pass a custom meta:

<ReferenceArrayField queryOptions={{ meta: { foo: 'bar' } }} />

render

Alternatively to children, you can pass a render prop to <ReferenceArrayField>. It will receive the ListContext as its argument, and should return a React node.

This allows to inline the render logic for the list of related records.

<ReferenceArrayField
    label="Tags"
    reference="tags"
    source="tag_ids"
    render={({ isPending, error, data }) => {
        if (isPending) {
            return <p>Loading...</p>;
        }
        if (error) {
            return <p className="error">{error.toString()}</p>;
        }
        return (
            <ul>
                {data.map((tag, index) => (
                    <li key={index}>{tag.name}</li>
                ))}
            </ul>
        );
    }}
/>

reference

The resource to fetch for the relateds record.

For instance, if the posts resource has a tag_ids field, set the reference to tags to fetch the tags related to each post.

<ReferenceArrayField label="Tags" source="tag_ids" reference="tags" />

sort

By default, the related records are displayed in the order in which they appear in the source. For instance, if the current record is { id: 1234, title: 'Lorem Ipsum', tag_ids: [1, 23, 4] }, a <ReferenceArrayField> on the tag_ids field will display tags in the order 1, 23, 4.

<ReferenceArrayField> can force a different order (via a client-side sort after fetch) if you specify a sort prop.

For instance, to sort tags by title in ascending order, you can use the following code:

<ReferenceArrayField
    label="Tags"
    source="tag_ids"
    reference="tags"
    sort={{ field: 'title', order: 'ASC' }}
/>

sx: CSS API

The <ReferenceArrayField> component accepts the usual className prop. You can also override many styles of the inner components thanks to the sx property (see the sx documentation for syntax and examples). This property accepts the following subclasses:

To override the style of all instances of <ReferenceArrayField> using the application-wide style overrides, use the RaReferenceArrayField key.
